Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires

1
MOQ
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Średnica wlotu: 38 mm
Średnica gniazdka: 6mm
Woltaż: 380 V
Moc: 55 W.
Wymiary: 2500*2000*2500mm
Waga: 8000 kg
Średnica kabestanu: 1400mm
Maksymalny przewód wejściowy: Ø38mm
Minimalny przewód wejściowy: Ø6mm
Szybkość rysowania: 30 m/min
Ściśliwość: 25%
Moc silnika: 75-110kw
Wymiary całkowite: 3×2,3×2,6M
Podstawowe komponenty: Silnik
Rok: 2022
Podkreślić:

Long Service Life Wire Drawing Machine

,

Large Capacity Inverted Type Wire Drawing Machine

,

Continuous Working Vertical Drop Type Wire Drawing Machine
Podstawowe informacje
Miejsce pochodzenia: Jiangsu, Chiny
Zapłata
opis produktu
Inverted/Vertical Drop Type Wire Drawing Machine
Product Overview

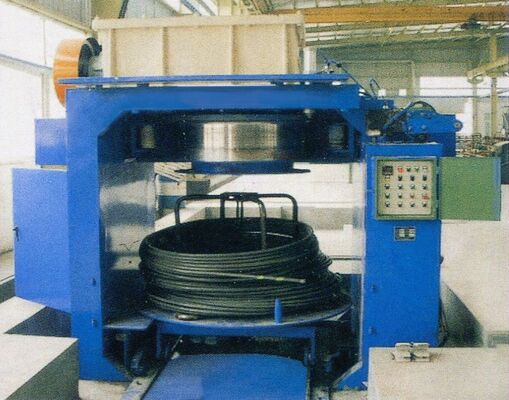

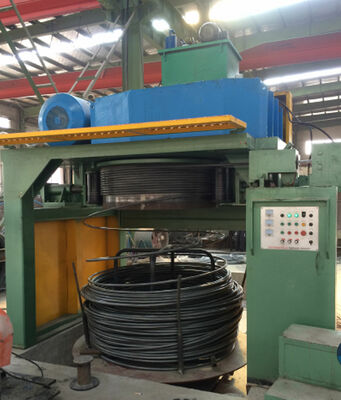

The inverted type wire drawing machine is engineered for large capacity and continuous operation. This robust system integrates both wire drawing and wire coiling processes, making it suitable for processing high, medium, and low-carbon steel wire, profile wire, stainless steel wire, and thick non-ferrous metal wire. The machine features a heavy-duty large recoiler system that facilitates easy wire unloading.
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 0 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 1 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 2 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 3
Product Specifications
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 4 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 5 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 6
Model Unit 1400 1200 1000 800
Capstan diameter mm 1400 1200 1000 800
Maximum diameter of inlet wire mm Ø38 Ø28 Ø20 Ø12
Minimum diameter of inlet wire mm Ø12 Ø12 Ø6 Ø6
Drawing speed M/min 30 40 50 70
Designed compressibility % 25 25 25 25
Motor power kw 75-110 55-75 45-55 30-37
Weight kg 10000 8000 6000 5000
Overall dimensions M 3×2.3×2.6 2.8×2.3×2.6 2.5×2×2.5 2.3×1.5×2.5
